Dell P2214hb Specs

Dell P2214hb Specs

Model P2214H P2414H
Screen type Active matrix - TFT LCD Active matrix - TFT LCD
Panel type In Plane Switching In Plane Switching
Viewable image
Diagonal
Horizontal, Active Area
Vertical, Active Area
Area
54.61 cm (21.5 inches)
476.06 mm (18.74 inches)
267.78 mm (10.54 inches)
127479.35 mm2
(197.59 inch2)
60.47 cm (23.8 inches)
527.04 mm (20.75 inches)
296.46 mm (11.67 inches)
156246.28 mm2
(242.18 inch2)
Pixel pitch 0.248 x 0.248 mm 0.2745 x 0.2745 mm
Viewing angle 178° (vertical) typical
178° (horizontal) typical
178° (vertical) typical
178° (horizontal) typical
Luminance output 250 cd/m² (typical) 250 cd/m² (typical)
Contrast ratio 1000 to 1 (typical)
2M to 1 (typical Dynamic
Contrast On)
1000 to 1 (typical)
2M to 1 (typical Dynamic
Contrast On)
Faceplate coating Anti-Glare with 3H hardness Anti-Glare with 3H
hardness
Backlight LED edgelight system LED edgelight system
Response time 8 ms grey to grey (typical) 8 ms grey to grey (typical)
Color depth 16.7 million colors 16.7 million colors
Color gamut CIE1931 (72%)* CIE1931 (72%)**

Electrical Specifications

*Support DP1.2 (CORE) specification. Excludes High Bit Rate 2 (HBR2), Fast AUX
transaction, Multi-stream transport (MST), 3D stereo transport, HBR Audio (or high data
rate audio)
Physical Characteristics
Model P2214H/P2414H
Video input signals • Analog RGB, 0.7 Volts +/- 5%, positive polarity at
75 ohm input impedance
• Digital DVI-D TMDS, 600 mV for each differential
line, positive polarity at 50 ohm input impedance
• DP 1.2 signal input support*
Synchronization input signals Separate horizontal and vertical synchronizations,
polarity-free TTL level, SOG (Composite SYNC on
green)
AC input voltage/frequency/
current
100 VAC to 240 VAC / 50 Hz or 60 Hz + 3 Hz / 1.2 A
(typical)
Inrush current • 120 V: 30 A (Max)
• 240 V: 60 A (Max)

Product Features

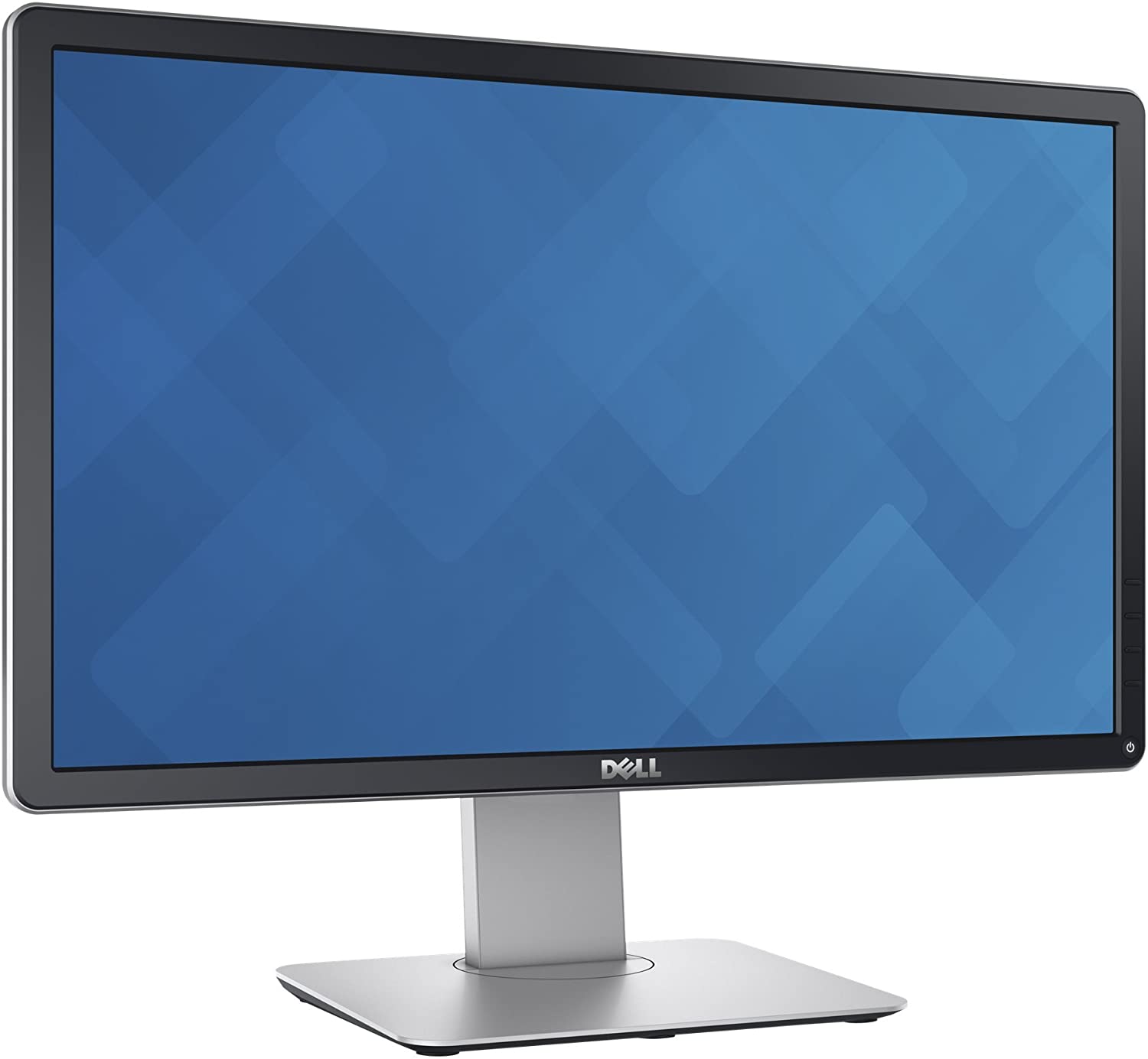

The Dell P2214H/P2414H flat panel display has an active matrix, Thin-Film Transistor
(TFT), Liquid Crystal Display (LCD) and LED backlight. The monitor features include:
• P2214H: 54.61 cm (21.5-inch) viewable area display (measured diagonally).
1920 x 1080 resolution, plus full-screen support for lower resolutions.
• P2414H: 60.47 cm (23.8-inch) viewable area display (measured diagonally).
1920 x 1080 resolution, plus full-screen support for lower resolutions.
• Wide viewing angle to allow viewing from a sitting or standing position, or while
moving from side-to-side.
• Tilt, swivel, vertical extension and rotate adjustment capabilities.
• Removable stand and Video Electronics Standards Association (VESA™) 100 mm
mounting holes for flexible mounting solutions.
• Plug and play capability if supported by your system.
• Power Cable (Varies by
Countries)
• VGA Cable
• DP Cable
• USB Upstream Cable
• Drivers and
Documentation Media
• Quick Setup Guide
• Product and Safety
Information Guide
About Your Monitor | 7
• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
• Software and documentation media includes an Information File (INF), Image Color
Matching File (ICM), and product documentation.
• Dell Display Manager Software included (comes in the CD shipped with the
monitor).
• Security lock slot.
• Stand lock.
• Capability to switch from wide aspect to standard aspect ratio while maintaining
the image quality.
• P2214H/P2414H monitor is BFR/PVC-free (Halogen-free) excluding external cables.
• TCO-Certified Displays.
• Arsenic-Free glass and Mercury-Free for the panel only.
• High Dynamic Contrast Ratio (2,000,000:1).
• 0.3 W standby power when in the sleep mode.
• Energy Gauge shows the energy level being consumed by the monitor in real time.
